DFI

AME185

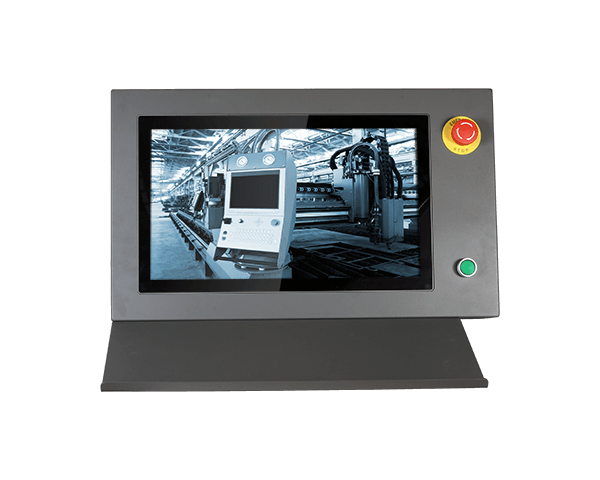

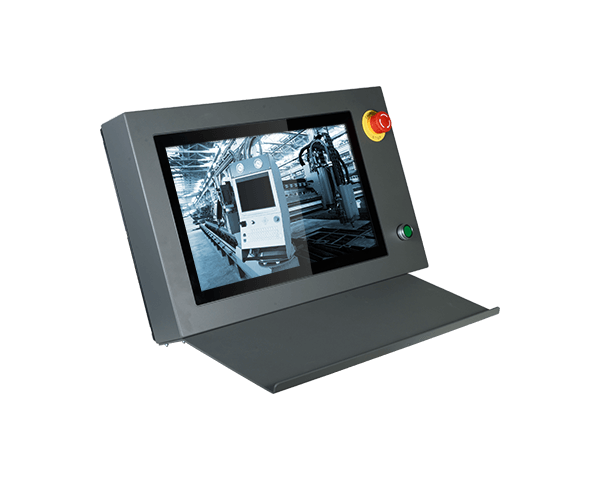

18,5″ Industrial Touch Monitor, Support Emergency Button

product-cs

Heb jij een vraag over dit product?

  • 18.5″ 1366×768 LCD Touch Panel
  • Projected Capacitive Multi-touch
  • Support Emergency Button and Press Button on Front Bezel
  • Support Keyboard Holder
  • 1 DVI-I, 1 VGA
Display and Touch Screen
Display
18.5” 1366×768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen
Brightness
450 cd/m²
Contrast
1000:1
Active Area
409.8mm x 230.4mm (H x V)
Response Time
8ms
View Angle
85°/85°/80°/80° (L/R/U/D)
Backlight Lifetime
50,000 hours
Front I/O
Buttons
1 x Emergency Button
1 x Press Button
1 x Keyboard Holder

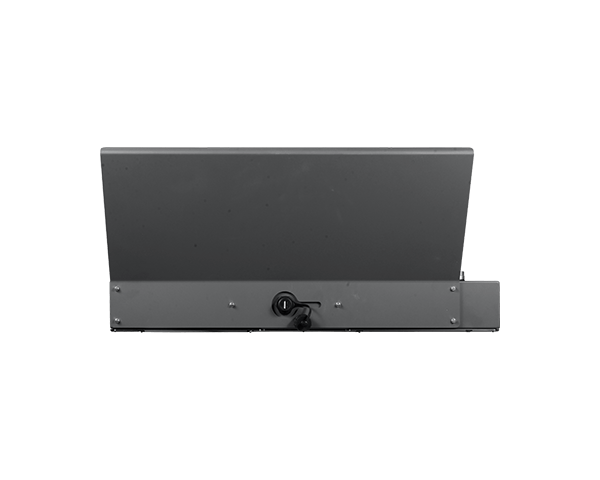

Bottom I/O
USB
1 x USB 2.0
1 x mini USB 2.0
Display
1 x DVI-I
1 x VGA
Power
Type
24V / 5A DC
Connector
DC Jack
Environment
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 60°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount
Dimensions (W x H x D)
TBD
Weight
TBD
Packing List
Packing List
• 1 AME185 Monitor
• 1 Power Cord
• 1 Quick Guide
Country of Origin
Country of Origin
Taiwan
