VC-230-AL

In-Vehicle System, Intel Atom® E3900, DDR3L, 2 Mini PCIe, 1 mSATA, 1 HDMI + 1 DVI-I

product-cs

Heb jij een vraag over dit product?

  • Anti-vibration and fanless in-vehicle computer
  • Supports ignition delay on/off function
  • 1 mSATA, eMMC storage options
  • Support GNSS by default
  • Dual SIM support for cellular
  • Supports Wi-Fi, LTE, and CAN bus communication
  • 15-Year CPU Life Cycle Support Until Q4′ 31 (Based on Intel IOTG Roadmap)
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.6GHz), 6.5W
Memory
1 DDR3L 1600/1866MHz SODIMM memory support up to 8GB
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Display
1 x HDMI
1 x DVI-I
HDMI: resolution up to 3840×2160 @ 60Hz
DVI-I: resolution up to 2560×1600 @ 60Hz
Dual Displays
HDMI + DVI-I
Storage
Internal
32GB/64GB eMMC onboard
1 x mSATA slot
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB/Dual micro SIM)
1 x Full-size Mini PCIe (PCIe/USB/micro SIM)
1 x Half-size Mini PCIe (share with 1 x mSATA slot)
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
Interface
2 x RJ45 GbE ports
GNSS
GNSS
Support GPS, Gallileo, GLONASS, BeiDou by u-blox NEO-M8N
Dead reckoning support upon request
LED
Indicators
1 x Power LED
1 x Storage LED

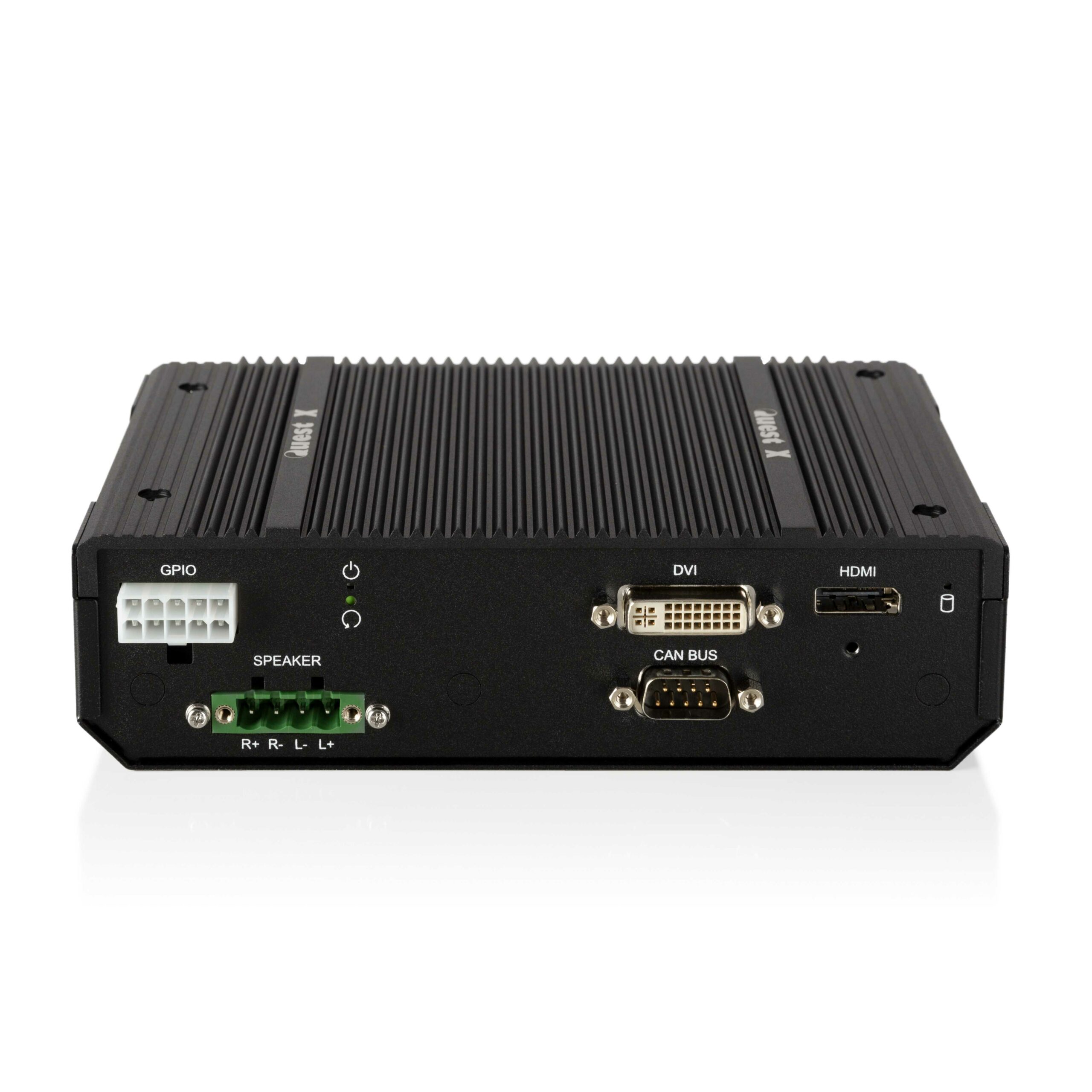

Front I/O
Display
1 x HDMI
1 x DVI-I
Audio
1 x 4pins 5.00mm terminal block connector
DIO
Isolated 8 bits DIO via 2 x 5pin 4.2mm power connector
Input voltage: 0 to 30VDC,
Output current: 50mA pre pin and Max. 200mA total.
On-state voltage: 12VDC nominal, open collector to 30VDC.
Buttons
1 x Reset button
CANBus
Supports dual Can bus via 1 x DB9 port by DFI MPE-CAN2 Mini PCIe module (optional)

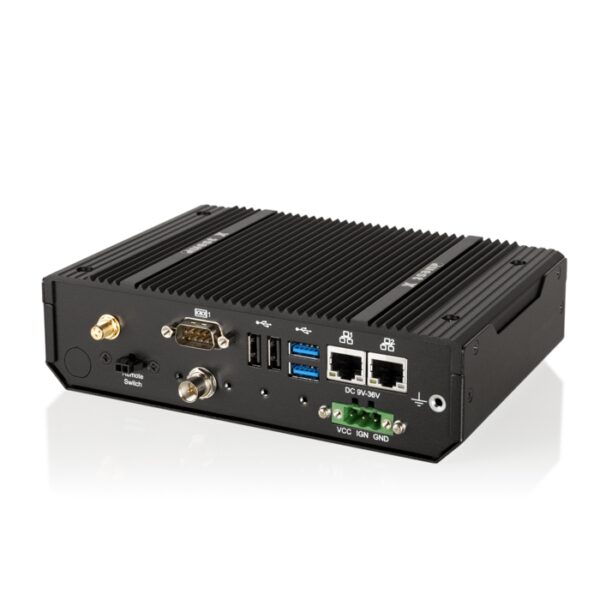

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB9-M)
USB
2 x USB 2.0 (type A)
2 x USB 3.0
Antenna
1 x SMA antenna hole
1 x FME antenna hole
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Power
Type
Wide range 9~36V with ignition control
Connector
3-pin terminal block (VCC/ACC/GND)
OS Support
OS Support
Windows 10 64-bit
Linux
CentOS 7
Environment
Operating Temperature
-40 to 70°C
Storage Temperature
-40 to 85°C
Mechanism
Construction
Aluminum + SPGC Metal
Mounting
Wall/VESA mount
Dimensions (W x H x D)
180mm x 50mm x 121.2mm (W x H x D)
Weight
1 kg including CPU and memory
Standards and Certifications
Shock
MIL-STD-810G 516.6
Vibration
MIL-STD 810G 514.6C-3
Certifications
CE/FCC Class B/E-mark (E13)
Country of Origin
Country of Origin
Taiwan
